SKU: BX-SRPF310-X

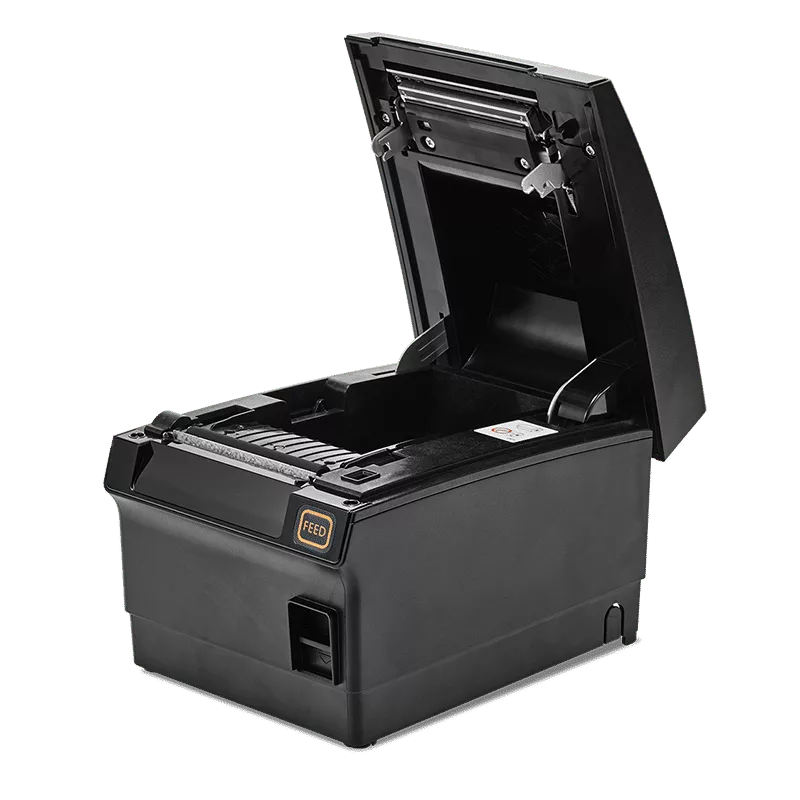

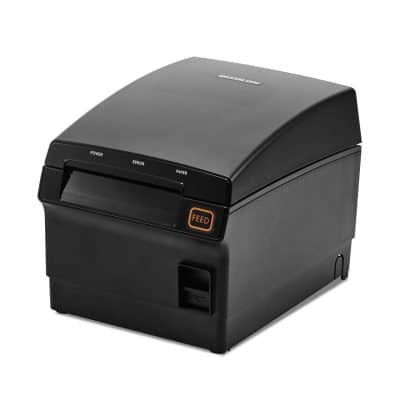

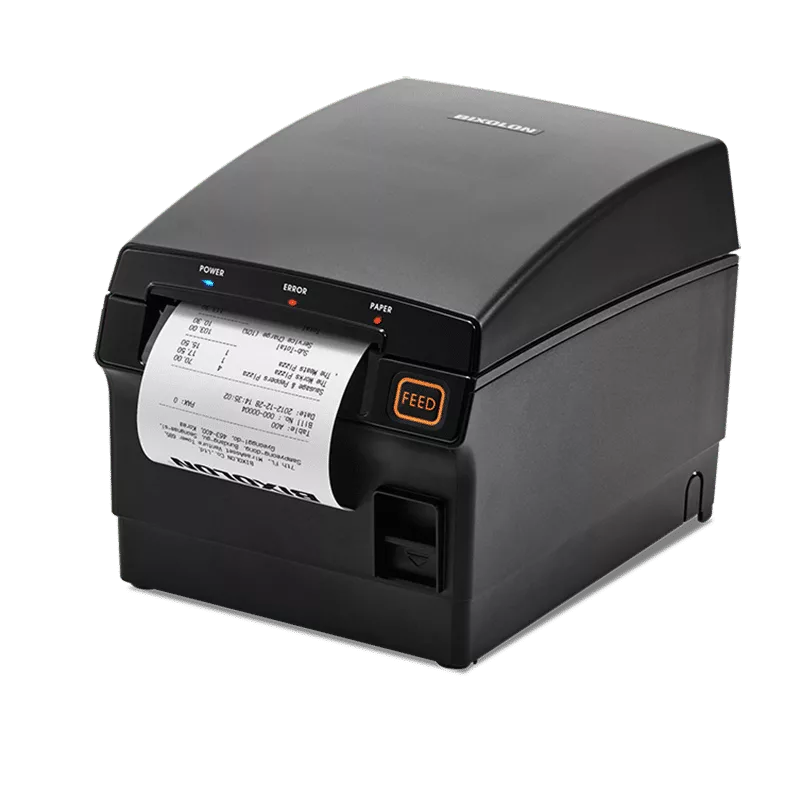

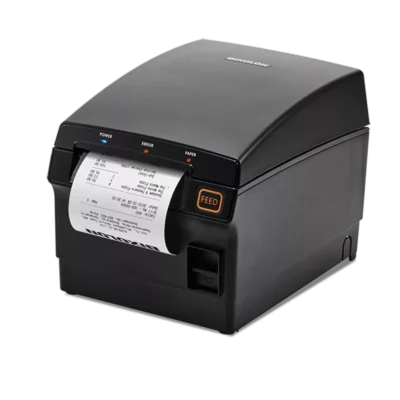

BIXOLON SRPF310COSG PRINTER GRADED

BIXOLON SRPF310COSG PRINTER GRADED

Login for trade prices

Interested in becoming a reseller?

We'd love to talk to companies or individuals who have a
deep understanding of POS or IT Solutions.

Description

SRP-F310II front exit, 3” direct thermal printer with a splash proof design is suitable for a number of applications in Retail, Hospitality, Ticketing and more.

Offering a robust, ergonomic design, the SRP-F310II is IP12 certified, boasting the latest in Liquid-Barrier™ technology and a built in power supply.

Offering easy paper load with optional paper guide for 2” or 3” media choice, the SRP-F310II prints at speeds up to 350mm/second at 180dpi or 203dpi print resolution. Coupled with high reliability of 250km TPH with an auto cutter guaranteed up to 3 million cuts.

The SRP-F310II comes with the All in one Plus™ interface with USB and Ethernet as standard and optional Serial, Parallel, Powered USB, Bluetooth or WLAN. Providing compatibility with market-leading programming languages with an extensive range of drivers and SDKs (Software Development Kits).

The SRP-F310II also features the optional BIXOLON Interactive Linker, offering programmable receipt on demand, cash drawer open, stop printing and signal back to host POS functionality. Alongside a paper saving mode supporting eco-friendly lower power consumption technology.

Download Datasheet

Print Characteristics
Print Method Direct Thermal (Front Exit)
Print Speed Up to 350 mm/sec
Print Resolution “SRP-F310II: 180 dpi (512dots)SRP-F312II: 203 dpi (576dots)SRP-F313II: 203 dpi (640dots)”
Print Width “SRP-F310II: Up to 72 mmSRP-F312II: Up to 72 mmSRP-F313II: Up to 80 mm”
Sensor Paper End, Paper Near End, Cover Open
Media Characteristics
Media Type Receipt
Media Width “80 Optional 83 mm”
Media Roll Diameter Up to 105 mm
Media Thickness 0.05 ~ 0.08mm
Supply Method Easy Paper Loading
Physical Characteristics
“Dimensions(WxDxH)” “154 x 203 x 148 mm(6.06 x 7.99 x 5.82 inch)”
Weight 2.00 kg (4.40 lbs.)
Electrical EnergyStar Certified,External Power Supply Housed Internally (Adaptor 24V/2.5A, 50/60Hz
Drawer Port 2 ports (Via y-type adaptor)
Performance Characteristics
Memory
NV Image Memory 768 Kbytes (Mono)
Receive Buffer 4 Kbytes
User Define Buffer 12 Kbytes
Interface “Standard: USB V2.0 FS +Ethernet Optional: USB V2.0 FS +Ethernet +Serial / Dual Serial / Parallel / WLAN¹ / Bluetooth / Powered USBSRP-F310IIHi (B-gate Hub Interface): 3 USB Host ports (V2.0 HS) + 1 Device port (V2.0 HS) + 1 USB Host with charging + Ethernet + WLAN²————————————————WLAN¹: 802.11a/b/g/n (2.4G and 5G)WLAN²: 802.11a/ac/b/g/n (2.4G and 5G) USB dongle type (Optional)Bluetooth: V4.2 Classic / LE, Class 1, MFi certified”
Environment Characteristics
Temperature “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)”
Humidity “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH”
Reliability
Thermal Print Head (TPH) 250 km ***
Auto Cutter 3 Million Cuts ***
*** Specified Paper ” – TF50KS-E (Paper thickness: 65μm) : Nippon Paper industries Co., Ltd. – PD 150R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd – PD 160R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd. – P350 (Paper thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA)”
Software
Emulation BXL / POS
Driver/Utility “Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramSRP-F310IIHi: Utility Program”
SDK/Plugin “Android/iOS/Windows SDKLinux SDKXamarin SDKChrome SDKCordova PluginSRP-F310IIHi: B-gate iOS/Android/Windows SDK Chrome SDK, B-gate SDK_Cloud Server Print, B-gate SDK_Web App Print”
Application “mPrint App (iOS)mPrint Server (Windows, iOS) “
MDM(Optional) BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android)
Fonts/Graphics/Symbologies
Character Size “Font A: 12×24 Font B: 9×17 Font C: 9×24KOR, CHN, JPN: 24×24”
Characters Per Line “SRP-F310II: Font A: 42 Font B, C: 56KOR, CHN, JPN: 21SRP-F312II: Font A: 48 Font B, C: 64KOR, CHN, JPN: 24SRP-F313II: Font A: 53 Font B, C: 71KOR, CHN, JPN: 26”
Character Sets “Alphanumeric: 95Extended Graphics: 128×35 pageInternational: 32”
Graphics Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies “1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code”
Accessories
Standard 3 inch Partition (83 mm)
Optional “External buzzer, B-Melodist,USB A-B Cable 1.8m, USB to Serial cable, WLAN Dongle,Powered USB 0.5m, Powered USB 1.2m”

Additional information

Weight 3.04 kg
