Description

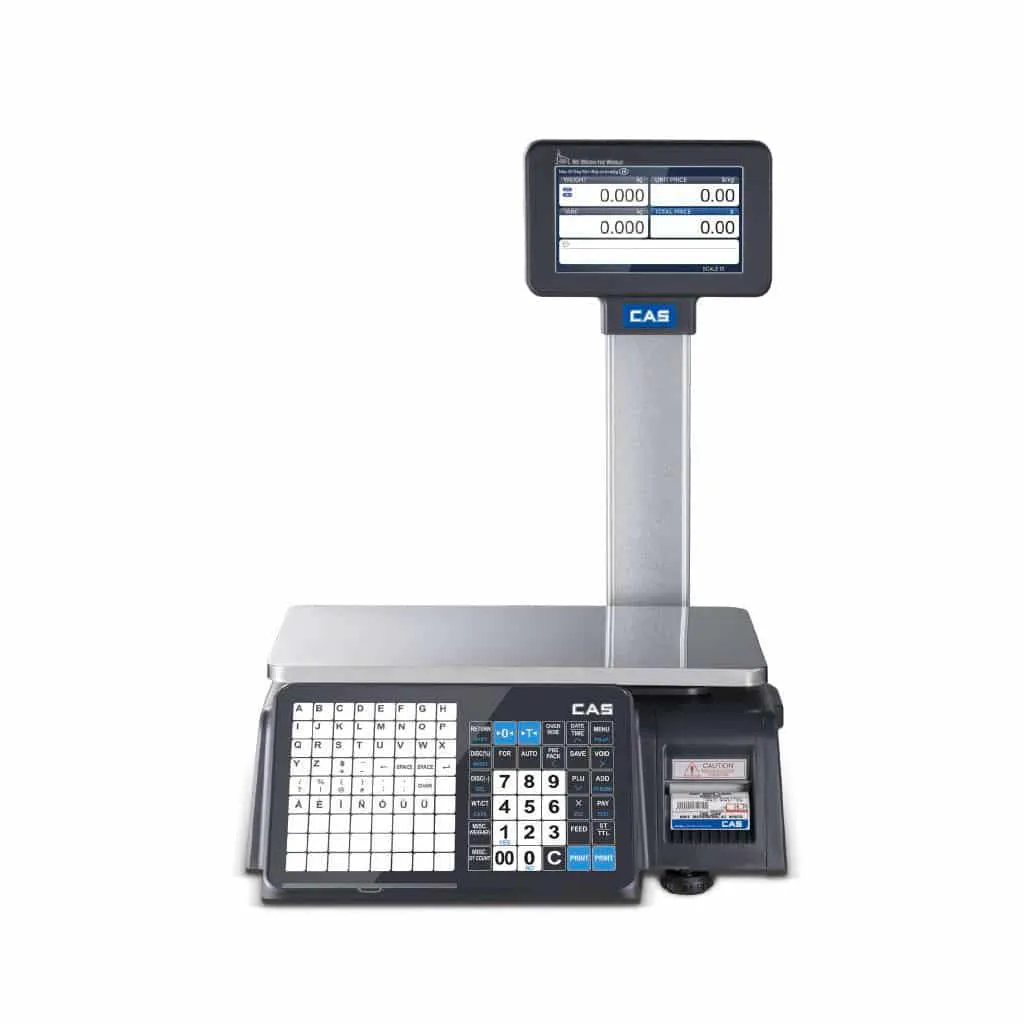

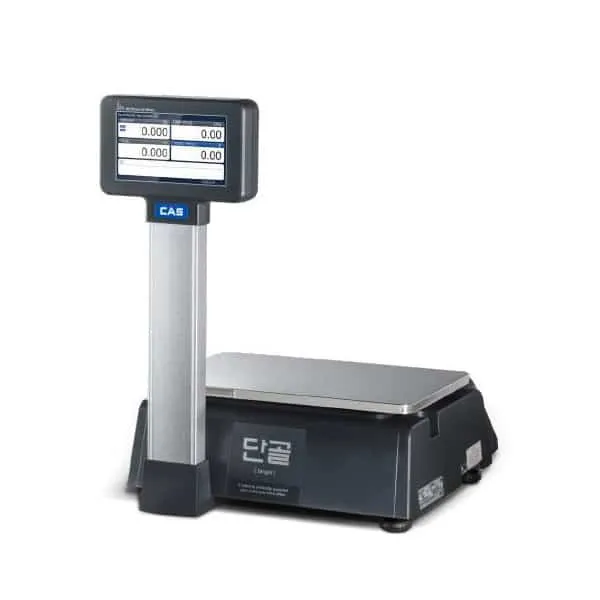

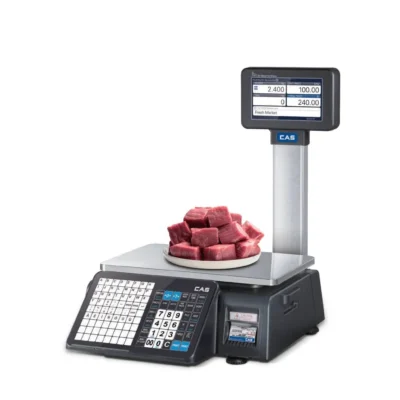

CAS CN1 Series Network Printing Scale.

Introducing the first product of the new CN series, CN1.

CN stands for “CAS NETWORK” and is a printer scale lineup with enhanced network functionality. it features robust remote functionality based on enhanced networks and improved information transfer capability with 7″ colour display. also, CN1 is compatible with the existing CL series Label Printing Scales.

Remote Control & Print

Via CN1 remote software, users can connect CN1 scale remotely and check status and malfunction of scale. In addition, CN1 software includes remote printing function which user can view actual CN1 images remotely.

Remote firmware update via ethernet

Users can update a firmware of CN1 Series Network Printing Scales remotely when connected to wired or wireless ethernet. Also, firmware updates can be easily done b connecting RS-232C or USB flash drives as before.

PLU an programmable function keys

The CAS CN1 Series Label Printing Scale has 72 PLU keys and 36 function keys. It can also store up to 10,000 PLU and quickly transfer PLU data from scale to computer or computer to scale via Wi-Fi or RS-232C

Overview:

• Display:
  • 7″ Colour display.
  • 800×400 pixels.
  • 16.7m colours (24 bit).
• Body:
  • Dark grey ABS upper case
  • Die cast aluminium platter.
• Keyboard:
  • Embossed key for clear touch feedback. (Polydome type).
  • 72 PLU keys and 36 function keys.
• Printer:
  • Printing Speed: 100mm per second.
  • Label size: Maximum width: 60mm – Maximum Length: 290mm.
• Interface:
  • 1. USB port for barcode scanner, keyboard or memory stick.
  • 2. LAN for weighing network system.
  • 3. RJ11 for cash drawer.
  • 4. RS-232C for external printer or PC.
  • 5. Wireless LAN for Wi-Fi (optional).

Specifications:

• Capacity: 15kg at 5g increments.
• Print Speed: 100mm/sec
• Print Resolution: 202 dpi
• Label Size: 40 to 60mm wide x 30 to 290mm
• Barcode Type: UPC, EAN13, I20F5, CODE128, GS1 databar, QR Code
• Printer Type: Direct Thermal Print
• Operating Temp. -10C to 40C (14F to 104F)
• Power: AC 100 – 240V 50/60Hz 1.5A

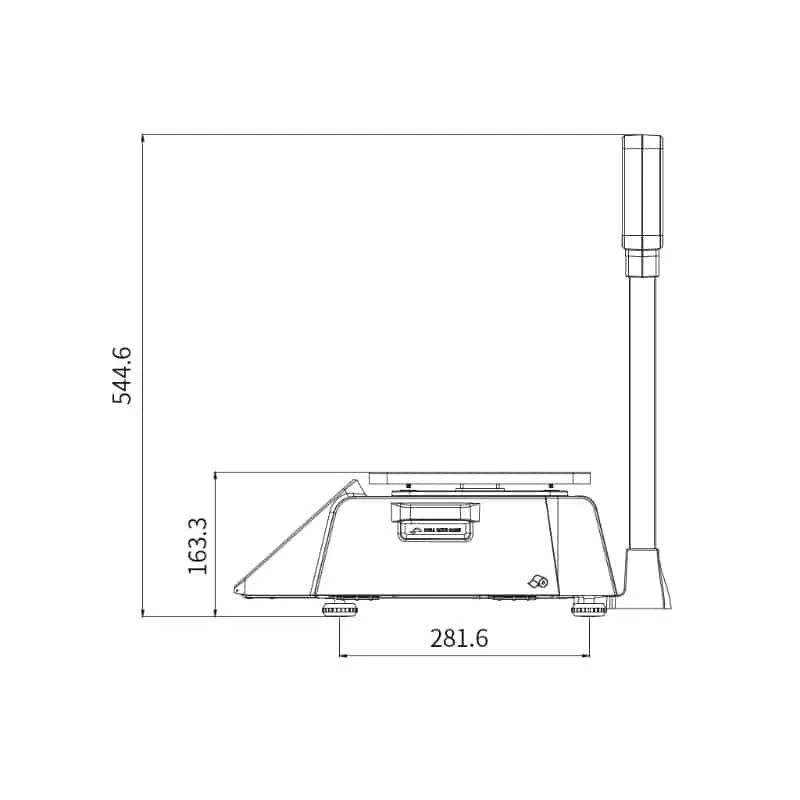

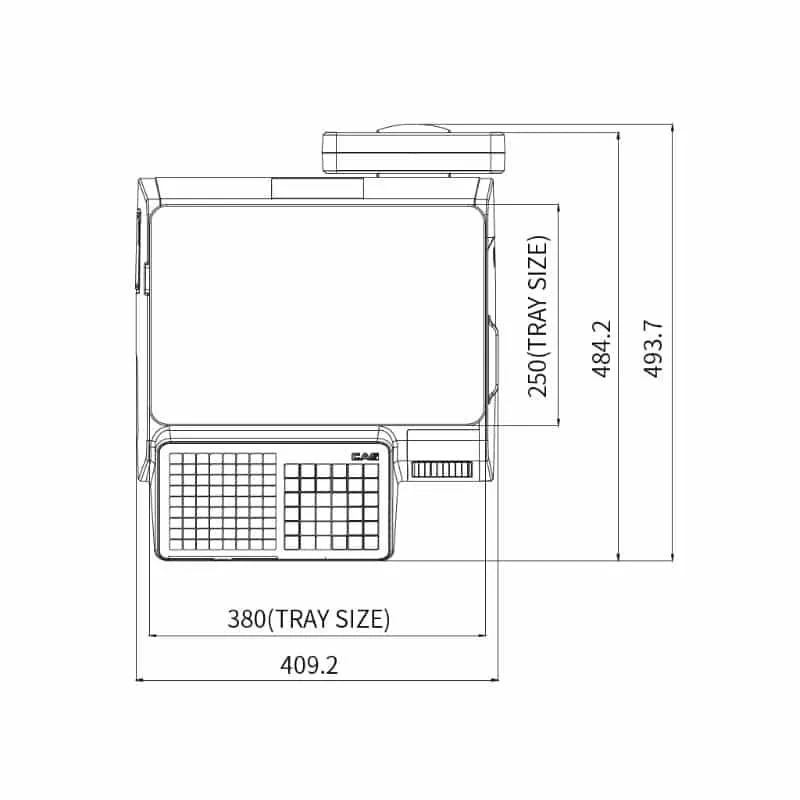

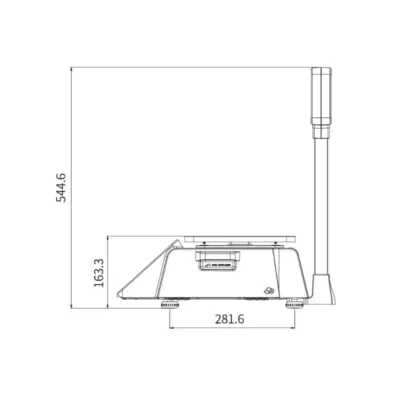

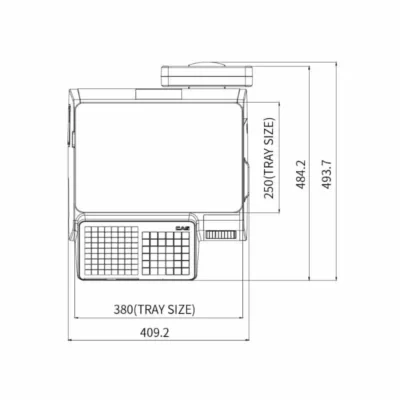

Dimensions

• Height: 545mm
• Width: 410mm
• Depth: 494mm
• Plate Size: 380mm x 250mm

Product weight: 7.65kg
