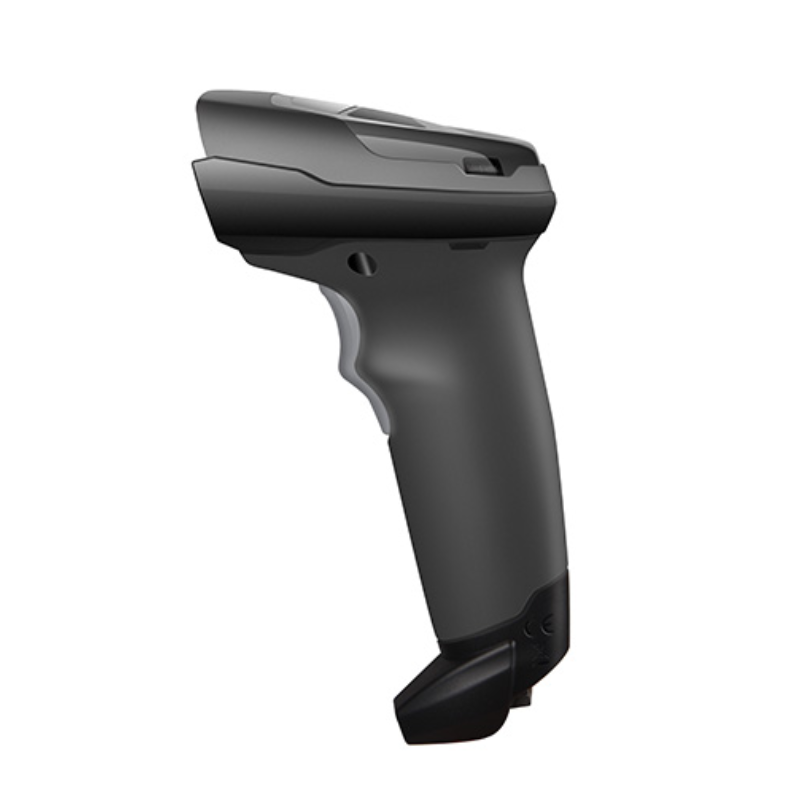

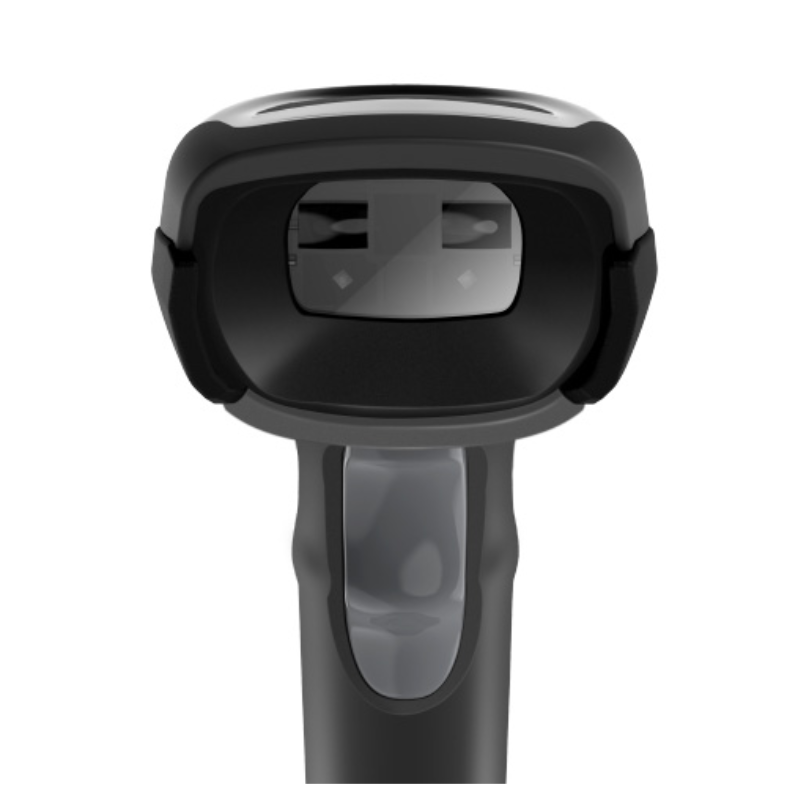

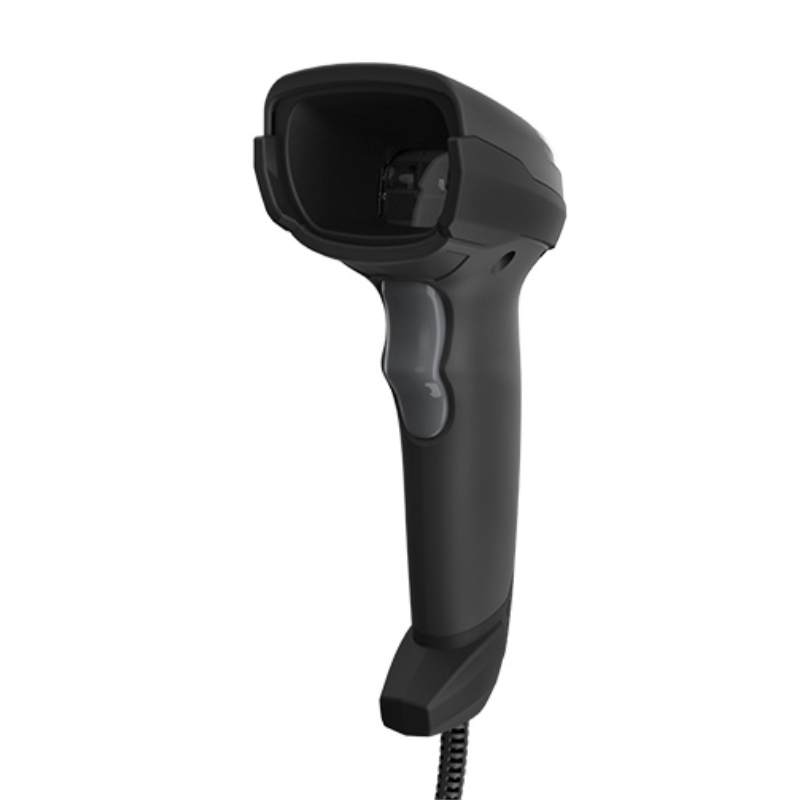

The HPRT N101 2D Handheld Barcode Scanner is a versatile and efficient tool for businesses that require accurate and fast barcode scanning. With its advanced 2D scanning technology, it can read both 1D and 2D barcodes with ease, making it suitable for a wide range of applications. Whether you need to scan barcodes on products, tickets, or documents, this handheld scanner delivers reliable and precise results.
Designed for comfort and convenience, the HPRT N101 features a lightweight and ergonomic design that allows for extended use without causing fatigue. Its compact size makes it easy to carry around, making it ideal for mobile scanning tasks.
It also comes with a durable construction that can withstand the rigors of daily use in various environments. Whether you are in retail, logistics, healthcare, or any other industry that requires barcode scanning, the HPRT N101 2D Handheld Barcode Scanner is a reliable and efficient solution that will streamline your operations and improve productivity.
•Top notch decoding library
•New generation CMOS image sensor
•Intelligent auxiliary aiming & lighting system
•Declassify highly-distorted barcodes
•1.5m drop resistance, IP42 protective level
•Comfortable, ergonomic design
| Scanning Parameter | Image Sensor | CMOS |
| Pixel | 640×480 | |
| Illumination | Infrared LED | |
| Focus | Infrared LED | |
| Symbologies | 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc. |
|
| Resolution | ≥3mil | |
| Typical DOF | 5mil Code39： 20mm–150mm EAN： 30mm–300mm 6.7mil PDF417： 25mm–130mm 10mil DM： 15mm–100mm 20mil QR： 15mm–210mm |
|
| Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º | |
| FOV | Horizontal: 32 °, Vertical: 25 ° | |
| Symbol Contrast | ≥20% | |
| Physical Parameter | Dimension(mm) | 83（D）*67（W）*175（H） |
| Weight | 128g | |
| Scanner Interface | RJ-45 Crystal Head | |
| Housing Materials | PC+TPU | |
| Notification | Buzzer, LED Indicator | |
| Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port | |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition |
|
| Electrical Parameter | Operating Voltage | 5VDC±10% |
| Operating Current | Standby: 100mA, Working: 230mA |
|
| Power | Standby: 0.5W,, Work: 1.15W |
|
| Environment Parameter | Operating Temperature | -20 ℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 5%~95%（No Condensation） | |
| ESD | ±15 kV（Air discharge ） ±8 kV（Direct discharge） |
|
| Environment Luminosity | 0~100, 000LUX | |
| Anti-shock Ability | 1.5 m | |
| Protection Grade | IP42 | |
| Certification | CE FCC RoHS | |
| Cable | USB: use to connect the scanner to the information receiving host RS-232: use to connect the scanner to the information receiving host |
|
| AC Adapter | 5V, coordinate with RS-232 cable to powerthe scanner | |
| Test Condition | Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
| Weight | 0.74 kg |
|---|
