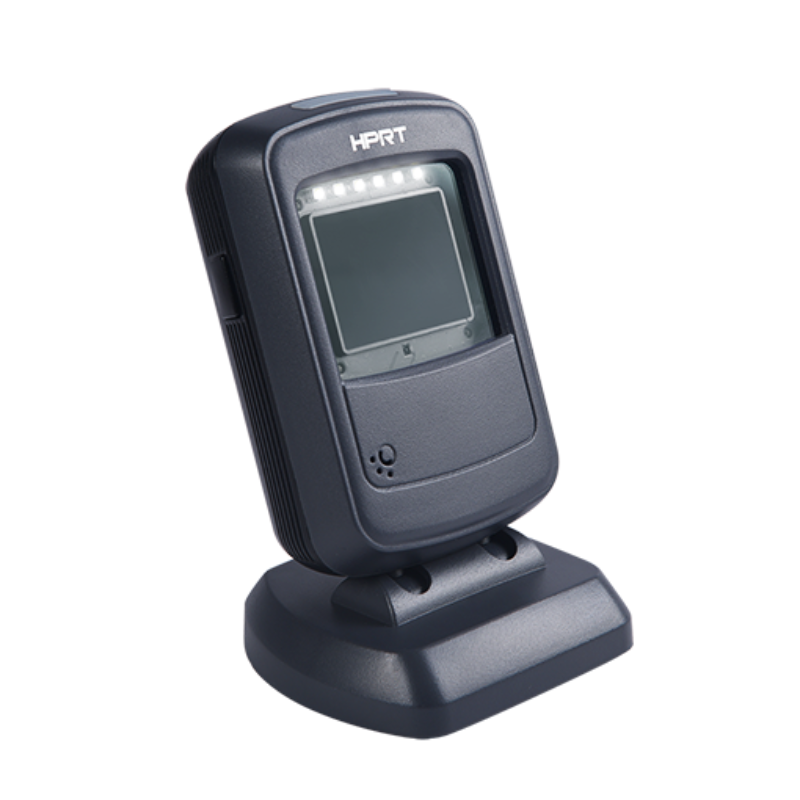

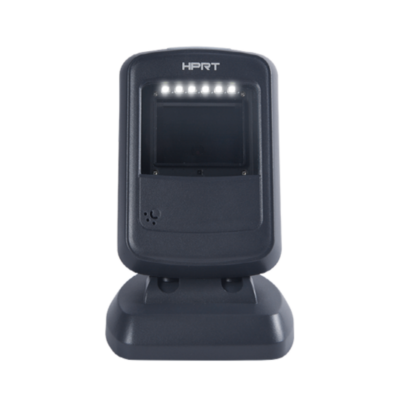

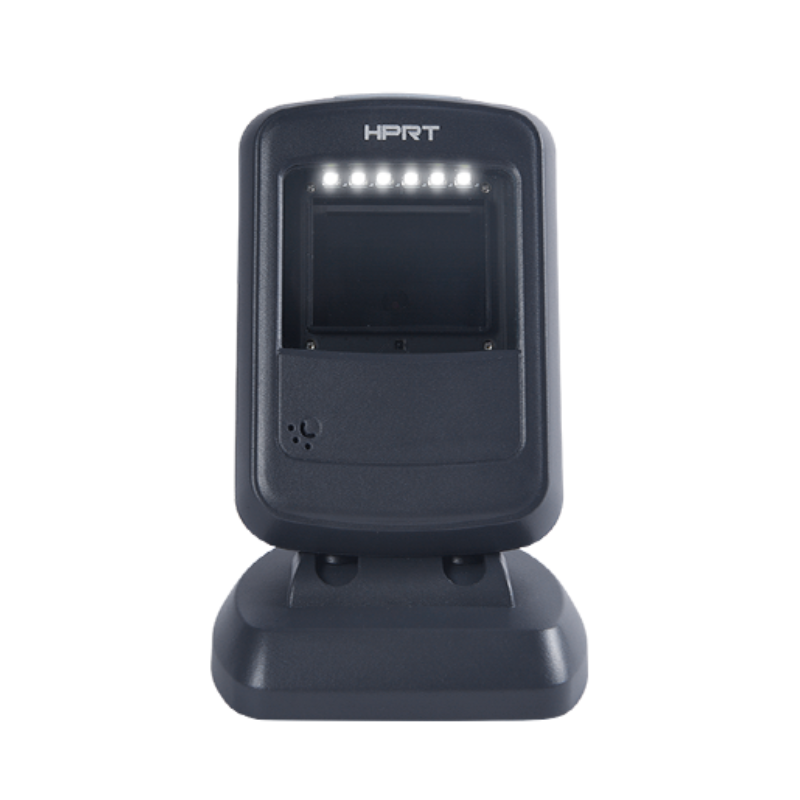

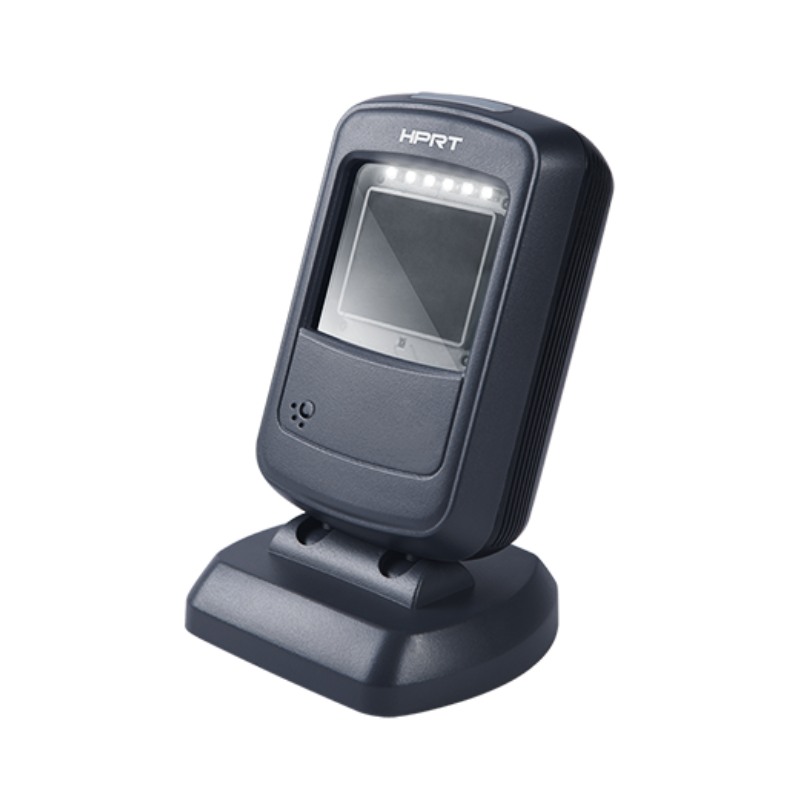

HPRT P200 (BR200) 2D SCANNER USB/SERIAL BLACK
Login for trade prices
The HPRT P200 2D Stationary Barcode Scanner is a high-performance scanning device designed to streamline barcode scanning processes in various industries. With its advanced 2D scanning technology, it can accurately read both 1D and 2D barcodes, making it suitable for a wide range of applications.
This stationary barcode scanner offers fast and efficient scanning capabilities, allowing users to quickly capture barcodes from various surfaces, including paper, labels, and screens. Its ergonomic design ensures comfortable and prolonged use, while its durable construction ensures long-lasting performance even in demanding environments.
The HPRT P200 2D Stationary Barcode Scanner is equipped with multiple connectivity options, including USB and RS232, making it compatible with various devices and systems. It also supports automatic scanning and can be easily integrated into existing workflows. Whether used in retail, logistics, healthcare, or manufacturing, this barcode scanner provides reliable and accurate scanning, improving productivity and efficiency.
• Solid-state hardware, higher stability and reliability
• Multiple common interfaces, highly compatible
• Independent R&D of core decoding technology
• Induction recognition
• Wide-angle adjustable scanning window
| Scanning Parameter | Image Sensor | CMOS |
| Pixel | 640×480 | |
| Illumination | White LED | |
| Symbologies | 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc. |
|
| Resolution | ≥4mil | |
| Typical DOF | 13mil EAN: 0mm-130mm
5mil code 39: 0mm-60mm 20mil QR: 0mm-70mm Mobile payment code(5.5 inch screen): 0mm-200mm |
|
| Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º | |
| FOV | Horizontal: 51 °, Vertical: 40 ° | |
| Symbol Contrast | ≥20% | |
| Physical Parameter | Dimension(mm) | 90 (D) *79 (W) *142(H) |
| Weight | 285g | |
| Notification | Buzzer, LED Indicator | |
| Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port | |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition |
|
| Electrical Parameter | Operating Voltage | 5VDC±10% |
| Operating Current | Standby: 140mA, Working: 245mA |
|
| Environment Parameter | Operating Temperature | -20 ℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 5%~95%（No Condensation） | |
| ESD | ±15 kV（Air discharge ） ±8 kV（Direct discharge） |
|
| Environment Luminosity | 0~100, 000LUX | |
| Certification | CE FCC RoHS | |
| Test Condition | Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
| Weight | 0.74 kg |
|---|
