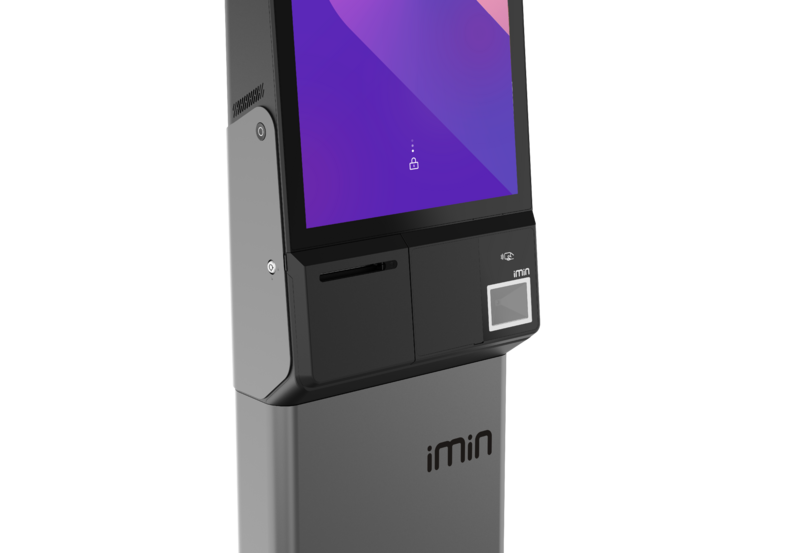

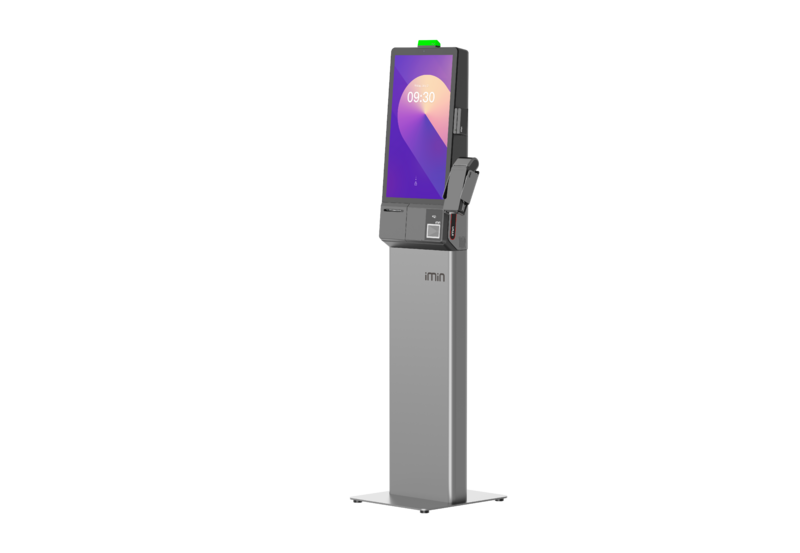

iMin Heron 1

Self-Service Kiosk

The iMin Heron 1 is a powerful all-in-one self-service kiosk designed to improve customer flow, reduce queue times, and free up staff for higher-value tasks. With a sleek modern design, large Full HD display, powerful AI-enhanced octa-core processor, versatile mounting options, and multiple accessory choices, Heron 1 is built for demanding retail, hospitality, and service environments.

Key Features

• 23.8″ Full HD touchscreen display
• Android 15 operating system
• AI-enhanced octa-core processor with NPU performance up to 3 TOPS
• Up to 16GB RAM and 256GB storage

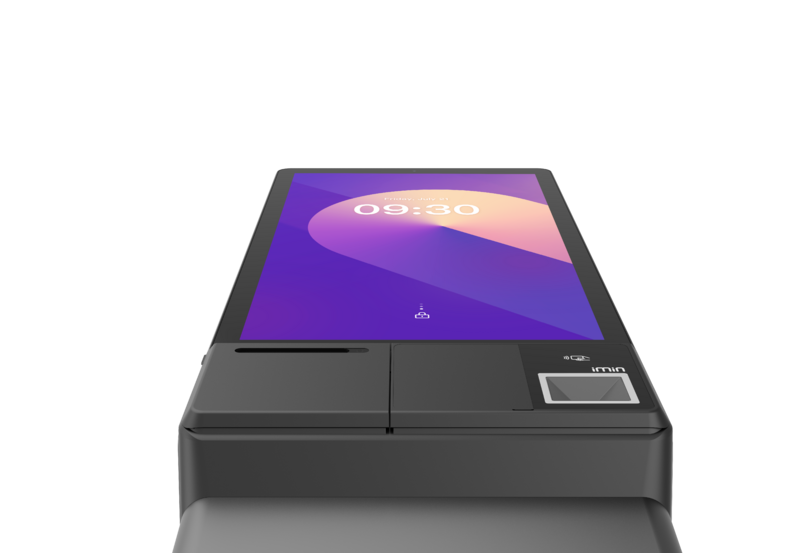

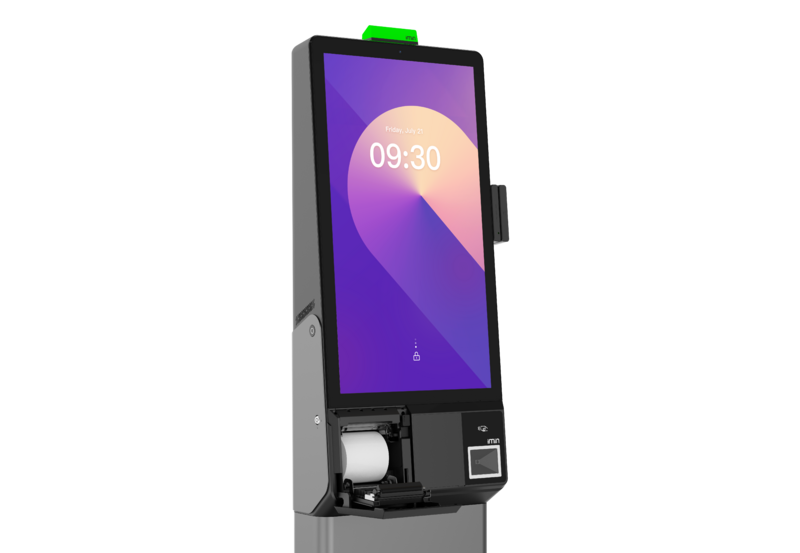

• Integrated 80mm thermal printer with automatic cutter
• Optional barcode scanner, NFC module, MSR reader, status light and POS holder
• Supports SoftPOS, EMV and QR code payment workflows

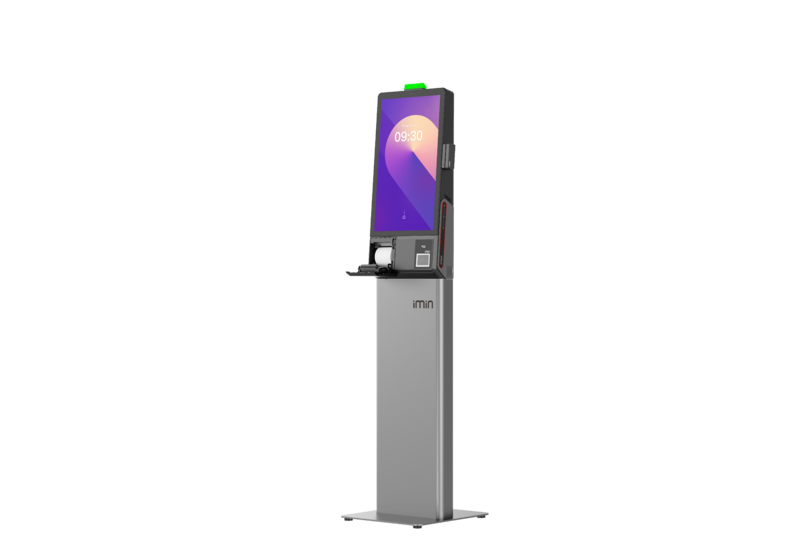

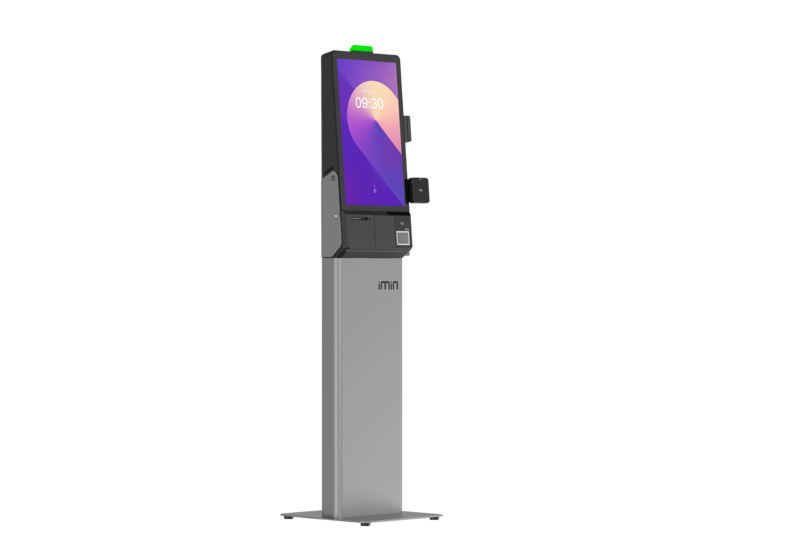

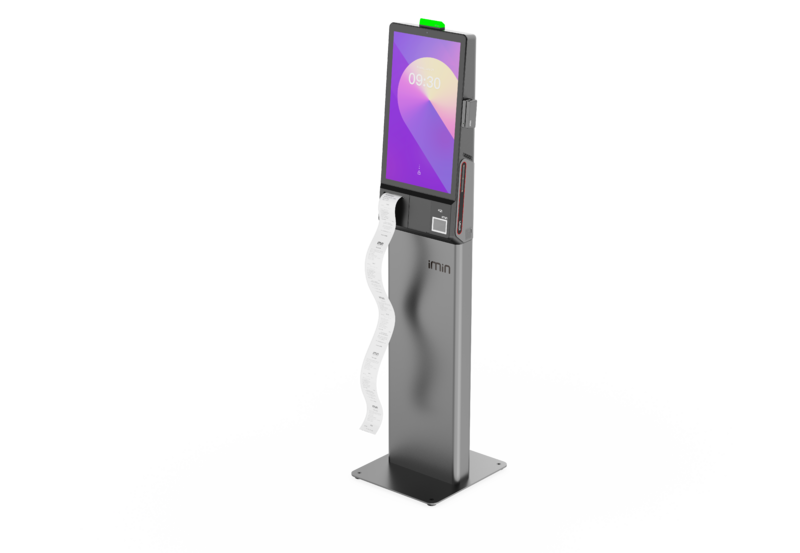

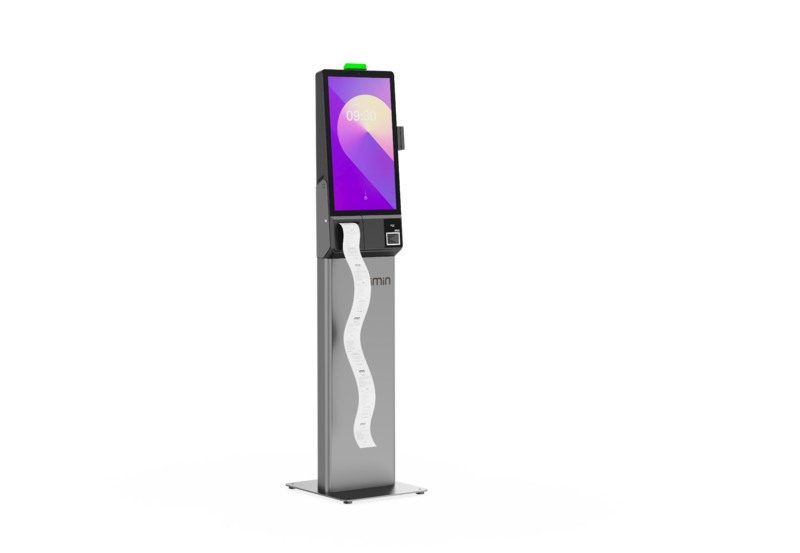

• Flexible installation with floor stand, table stand and wall/VESA mount options

Designed for Smarter Self-Service

Heron 1 is built to enhance the self-service customer experience with fast processing, responsive touch interaction, and a large bright display that makes ordering, check-in or payment simple and intuitive. It is ideal for restaurants, retail stores, hospitality venues, transport hubs, and other busy customer-facing environments.

High-Performance Processing

At the heart of the Heron 1 is an advanced 8-core processor featuring dual-core A76 2.0GHz and hexa-core A55 1.8GHz architecture, supported by an NPU rated at 3 TOPS. This gives the kiosk the processing power needed for smooth transactions, responsive applications, and reliable operation during peak periods.

Large Full HD Touch Display

The 23.8″ 1920 x 1080 Full HD display delivers crisp visuals and excellent screen space for menus, promotions, check-in interfaces and payment prompts. The multi-point capacitive touch panel supports 10-point touch, works even with gloves or wet hands, features anti-fingerprint treatment, and uses durable G+G glass construction.

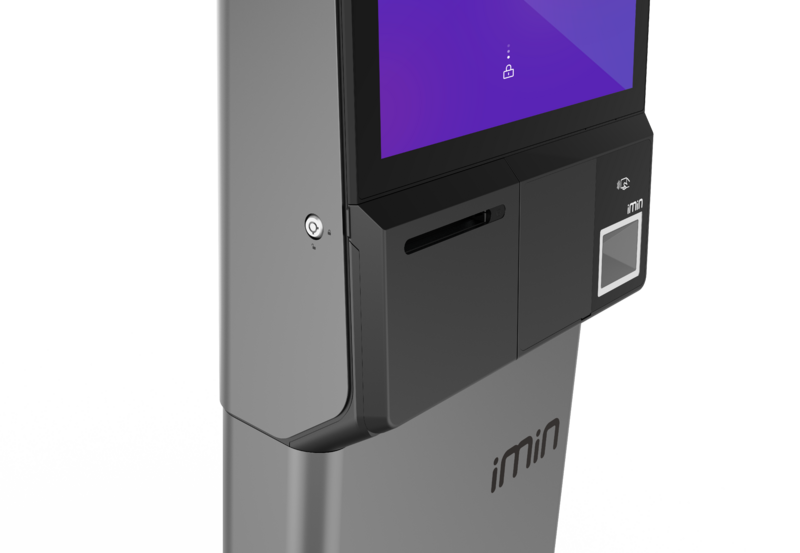

Scanner Options to Suit Your Business

Heron 1 can be configured with different scanner options depending on your environment. The standard scanner is designed for everyday barcode and QR code reading, while the retail scanner offers improved performance, faster scanning, better depth of field, and support for MRZ scanning, including passport reading.

Standard Scanner

• 0.3MP CMOS sensor
• 30 FPS scanning speed
• QR code depth of field: 13mm–230mm (40mil)
• Accuracy: 1D ≥ 5mil, 2D ≥ 6mil
• EAN13 depth of field: 13mm–120mm

Retail Scanner

• 1.3MP CMOS sensor
• 60 FPS scanning speed
• QR code depth of field: 0mm–280mm (40mil)
• Accuracy: 1D ≥ 4mil, 2D ≥ 5mil
• EAN13 depth of field: 0mm–170mm
• MRZ scanning support for passports

Flexible Payment Support

Heron 1 is designed to support modern payment environments, including NFC payments with SoftPOS compatibility, EMV payment workflows, and QR code payments. This makes it a strong option for businesses looking to streamline ordering and payment in one kiosk platform.

Additional Features

• 2MP front camera
• Facial recognition capability
• Dual 3W speakers
• Dual microphone system
• HDMI connectivity for additional displays
• Automated start-up for simplified deployment
• Dust- and water-resistant front interface
• Removable front cover for easier cleaning and maintenance
• Magnetic stripe reader option for loyalty or staff identification use

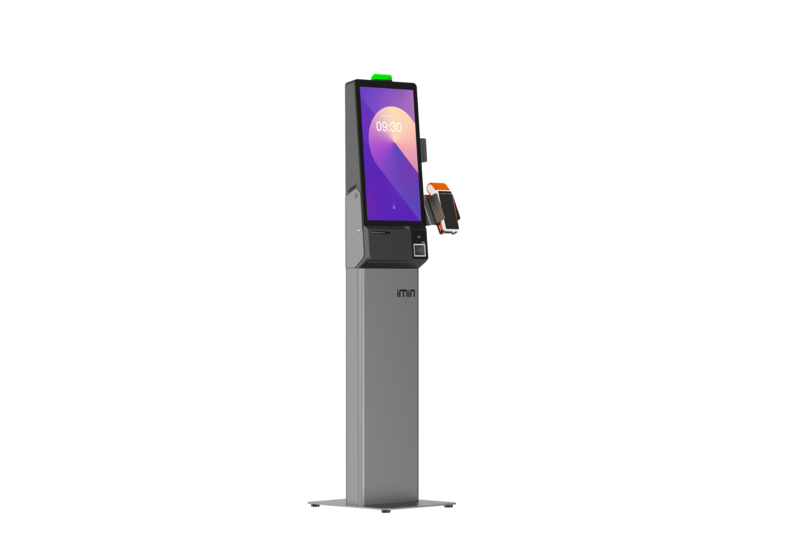

Mounting & Accessory Options

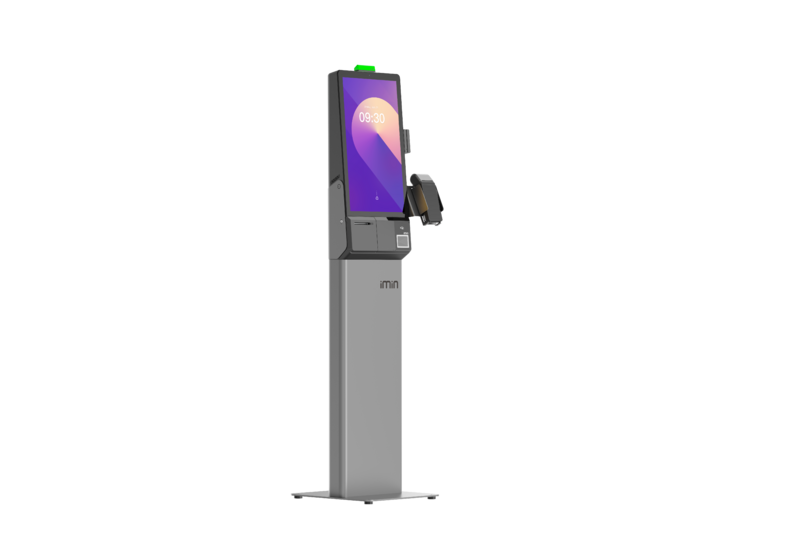

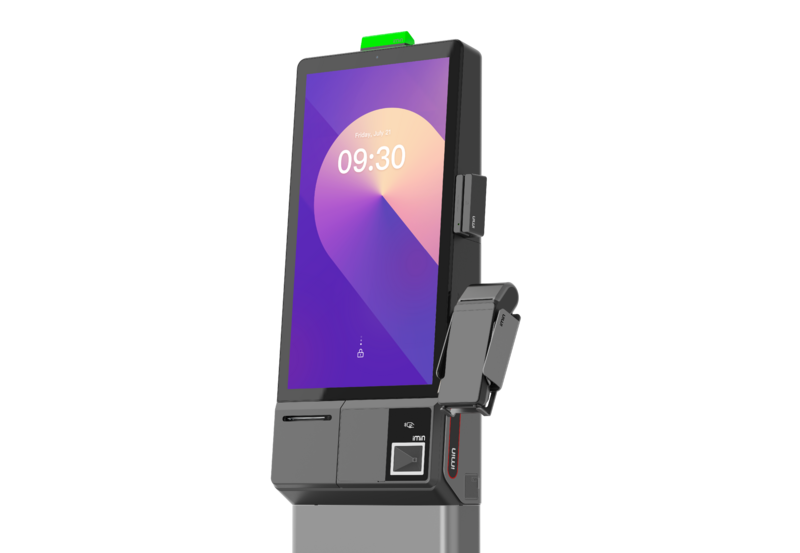

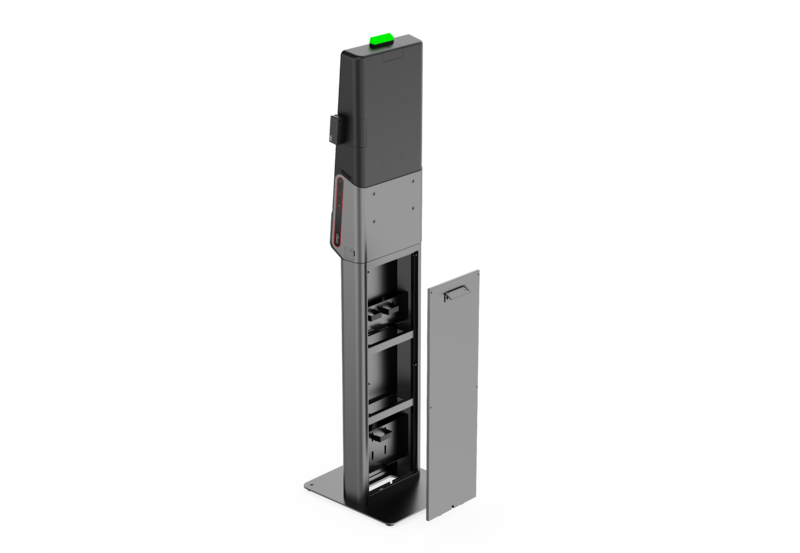

Heron 1 is built to adapt to different installation needs, with support for floor stand, table stand and VESA/wall mounting options. Available accessories include:

• MSR card reader
• Status light

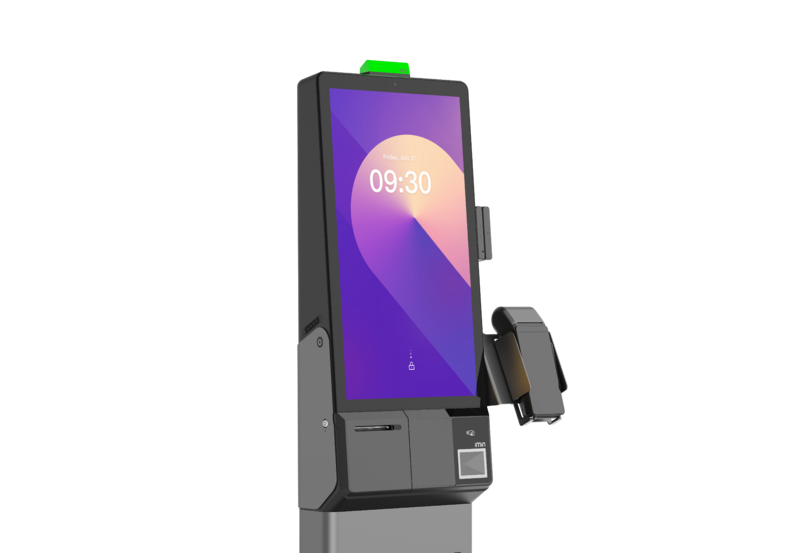

• POS holder
• Payment module holder
• NFC module
• Scanner
• Integrated printer

Technical Specifications

• Processor: Octa-core (Dual-core A76 2.0GHz + Hexa-core A55 1.8GHz), NPU 3 TOPS
• Memory: 4GB RAM + 64GB ROM / 8GB RAM + 128GB ROM / 16GB RAM + 256GB ROM
• Display: 23.8″, 1920 x 1080 Full HD
• Viewing Angle: ±85° (H) / ±85° (V)
• Brightness: 250 nits
• Contrast Ratio: 1200:1
• Touch Panel: Multi-point capacitive touch
• Operating System: Android 15, 64-bit
• Connectivity: Wi-Fi 6, Ethernet 1000M, Bluetooth 5.4, NFC
• Camera: 2MP front camera
• Speaker: Dual 3W speakers
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Printer: 80mm thermal printer with automatic cutter, up to 250mm/s
• Scanner: Supports 1D barcode and 2D QR scanning
• Power Adapter: Input 100–240V / Output 24V / 2.5A

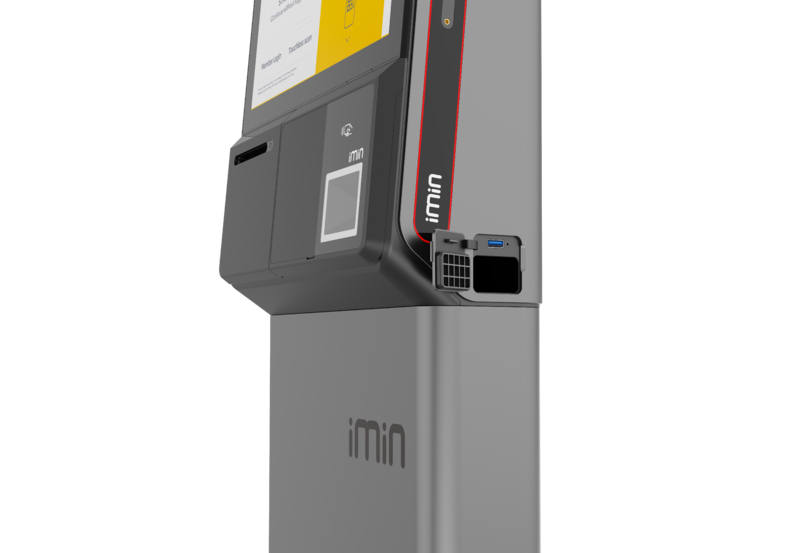

Ports

• USB 2.0 Type-A x 1
• USB 3.0 Type-A x 4
• USB 2.0 Type-C x 1
• 3.5mm headphone jack x 1
• DC jack x 1
• HDMI x 1
• RJ11 x 1
• RJ12 x 1
• RJ45 x 1
• Pogo pin (6 pin) x 2
• DB9 x 2
• TF card slot (up to 1TB) x 1

Certifications

Google GMS, FCC, CE, IMDA and WEEE.

Why Choose iMin Heron 1?

If you need a stylish, modern self-service kiosk with a large display, strong Android performance, broad payment flexibility, and scalable accessory options, the iMin Heron 1 is a compelling solution for high-traffic commercial environments.
