Description

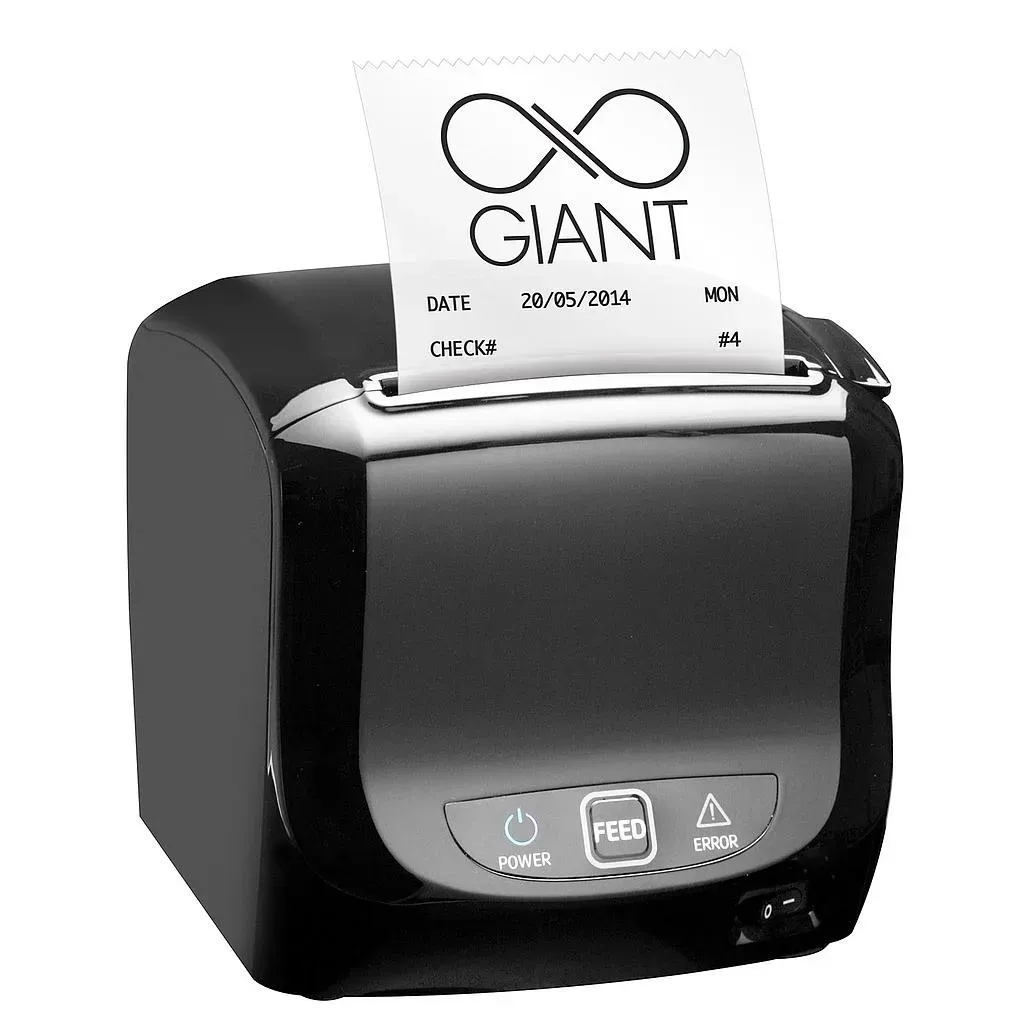

SAM4S GIANT 100 is the new 3″ thermal receipt printer. Distinctive in its very small size, the GIANT-100 is as small or smaller than 2″ Printers. Nevertheless it performs equal to or better than competing 3″printers. GIANT-100 is a signpost model, pointing the direction to which receipt printers will evolve in the future.
Features:
- Standard with USB, Serial and Ethernet with WiFi Option.
- Triple Interface Serial, USB and Ethernet as Standard.
- High Print Speed at 220mm/Second.
- Up to 80mm Wide Receipt.
- Support a Variety of Barcodes Including QR Codes.
- Wall Mount Option with Display Pivot.
- Low Power Consumption & Paper Saving.
- Tool Free Cabinet for Easy Assembly & Disassembly.
- Optional Kitchen Bell Feature.
- Stores/Prints User Defined Graphic Logos, Coupons or Advertising Messages.
- Energy Star Certified Superior Efficiency Reduces Energy Costs and Carbon Footprint.
Specifications:
MODEL NAME | GIANT-100 | |||
---|---|---|---|---|
Printing Method | Thermal Line Printing | |||
Resolution | 180 DPI | |||
Printing Speed | Mono Paper 80mm | Max. 250 mm/sec (59 Lines/sec) | ||
Mono Paper 58mm | 150 mm/sec | |||
Two Color Paper | 100 mm/sec | |||
Paper | Loading | Drop-In Type | ||
Width | Max. 80.0mm / 58.0mm | |||
Diameter | Max. ?? 83.0 mm | |||
Reliability | Mechanism (MCBF) | 70,000,000 Line | ||
TPH | 1 x 10^8 Pulses / 150Km | |||
Auto Cutter | 1,500,000 Cut | |||
Drawer Port | 2 ports (+24V) | |||
Barcode | UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QRCode |
|||
Driver | WEPOS, POSReady2009, Windows XP Pro, Windows Vist, Windows 7 Pro, POSReady 7, Windows 8 Pro, Industry 8, OPOS, JPOS, Linux Cups, Max(OSX10.8), Android SDK |
|||
Interface | USB + Serial(25Pin), USB + Serial(9Pin), USB + WiFi, USB + Serial+Ethernet 3-Combo |
|||
Dimension (with Foot Rubber) | 131(W) x 155(D) x 133(H) mm | |||
Weight(Net) | 0.9 Kg | |||
Color | Black, White | |||
Emulation | EPSON, STAR | |||
Option | Loading | No | ||
Paper Near End Sensor | Yes | |||
Kitchen Bell | Yes | |||
Wall Mount Kit | Yes | |||
Splash Cover | Yes | |||
Paper Separator (58mm) | Default |
