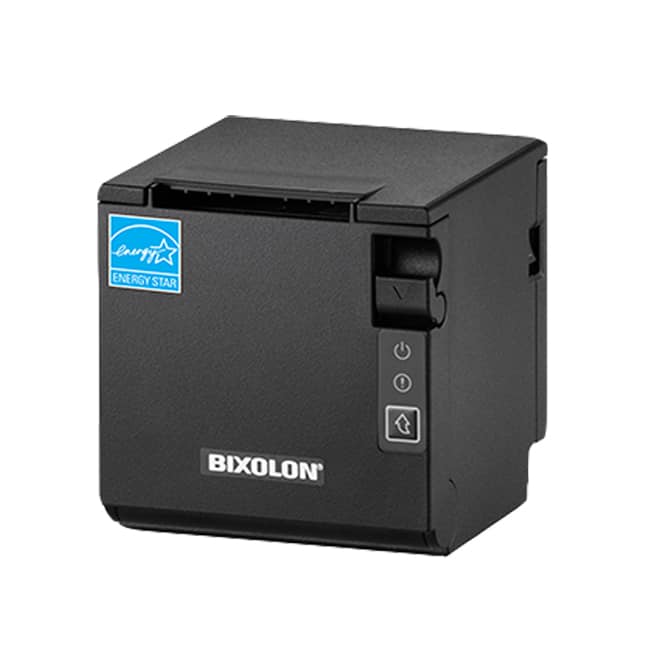

Thermal printer, front exit, Autocutter, (Ethernet/Serial/USB interface).
Login for trade prices
The SRP-Q200 offers super compact design for limited spaces, pairing multiple configurations for top and front-exit printing. Servicing excellent print speeds up to 250mm/sec at 203dpi print resolution which is ideal for couponing or ticketing applications that require dense data usage. Whilst supporting an integrated Auto Cutter and specialized Anti-Jam technology, its simple design, easy maintenance and efficient power supply; which is ideal for kiosks, is managed by a Seesaw-Type power switch. This is all coupled with a 2-year warranty as standard.
Available with a USB V2.0 FS + Serial interface as standard with optional Ethernet, Ethernet + Dual-band WLAN (5GHz and 2.4GHz) or Ethernet + Bluetooth LE. The SRP-Q200 is compatible with market-leading programming languages including BXL POS, alongside all major operating systems including Android™, iOS™ and Windows®. It is accompanied with a comprehensive suite of firmware & software, including Simple Network Management Protocol (MIB file) and SoftAP; and BIXOLON mPrint App for simple printing directly from your chosen web browser, plus more.
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | Up to 250 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | Up to 54mm |
| Sensor | Paper End, Cover Open |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 58.0 mm |
| Media Roll Diameter | Up to 60 mm |
| Media Thickness | 0.05 ~ 0.08mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxDxH)” | “103 x 104 x 109 mm(4.03 x 4.10 x 4.24 inch)” |
| Weight | 0.61 kg (1.34 Ibs.) |
| Electrical | EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | – |
| NV Image Memory | 768 Kbytes (mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | “Standard: ① USB V2.0 FS + Serial② USB V2.0 FS + EthernetOptional: ① USB V2.0 FS + Ethernet + WLAN② USB V2.0 FS + Ethernet + Bluetooth————————————————WLAN: 802.11a/b/g/n (2.4G and 5G)Bluetooth: V4.2 Classic / LE, MFi certified” |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 100 km |
| Auto Cutter | 1.0 Million Cuts |
| *** Specified Paper | ” – TF50KS-E (Paper Thickness: 65μm) : Nippon Paper Industries Co., Ltd. – PD 160R (Paper Thickness: 75μm) : New Oji Paper Mfg. Co., Ltd. – P350 (Paper Thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA) – Hansol Thermo 65 (Paper Thickness: 65μm) : Hansol Paper Co., Ltd (Korea)” |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | “Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility Program” |
| SDK/Plugin | “Android/iOS/Windows SDKLinux SDKXamarin SDKChrome SDKCordova Plugin” |
| Application | mPrint App (iOS) |
| MDM(Optional) | – |
| Fonts/Graphics/Symbologies | |
| Character Size | “Font A: 12×24 Font B: 9×17 Font C: 9×24KOR, CHN, JPN: 24×24” |
| Characters Per Line | “Font A: 36, Font B, C: 48KOR, CHN, JPN: 18” |
| Character Sets | “Alphanumeric: 95Extended Graphics: 128×35 pageInternational: 32” |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | “1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code” |
| Accessories | |
| Standard | |
| Optional | “External buzzer, B-MelodistUSB A-B Cable 1.8m,Serial Cable (9pin-9pin)” |
| Weight | 3.04 kg |
|---|
